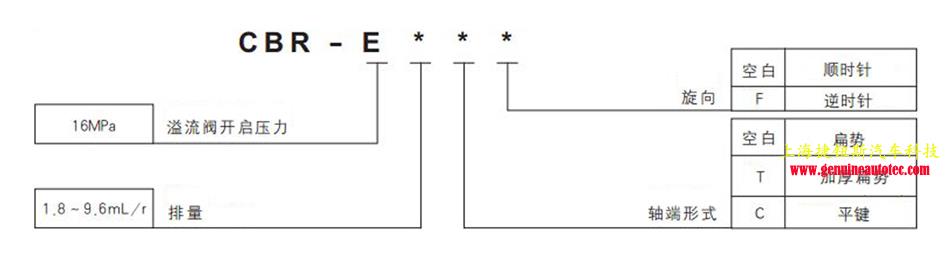

布赫Bucher CBR齿轮泵型谱

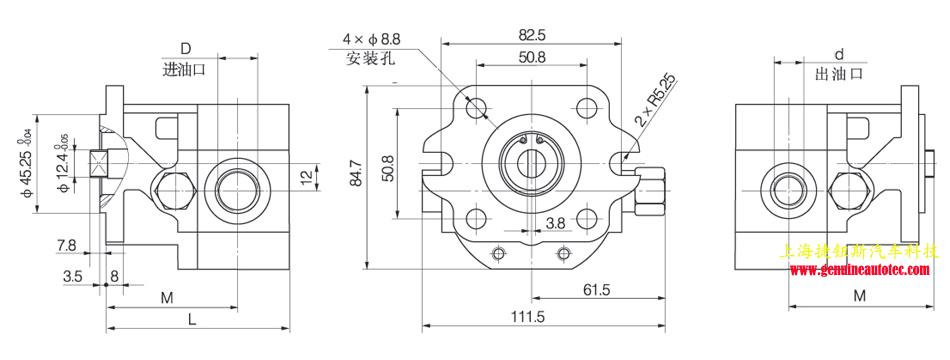

CBR齿轮泵外形尺寸图

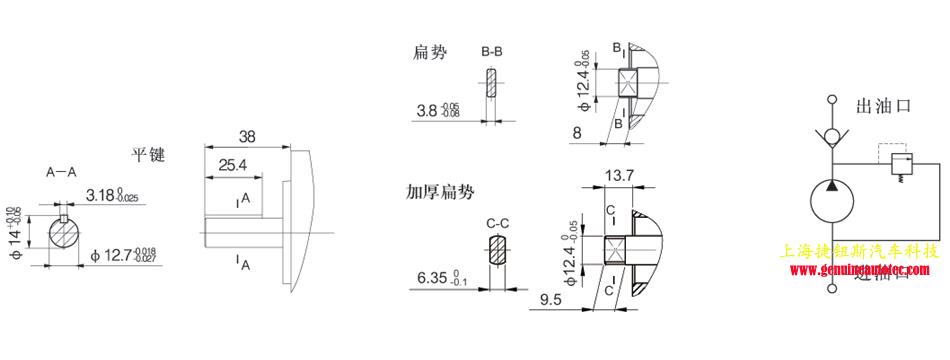

齿轮泵轴端选择
CBR齿轮泵技术参数
|
型 号 |
排量 mL/r(in 3/r) |
额定压力(MPa) |
溢流阀开启压(MPa) |
转速 (RPM) |
L(mm) |
M (mm) |
D |
d |
|
|
额定 |
< |
||||||||
|
CBR-E1.8** |
1.88 (0.11) |
12 |
17.5 |
2000 |
<3450 |
93.8 |
65.3 |
SAE 油口 |
SAE 油口 |
|
CBR-E2.1** |
2.1 (0.13) |
94.8 |
|||||||
|
CBR-E2.6** |
2.6 (0.15) |
96.3 |
71.8 |
||||||
|
CBR-E3** |
3.18 (0.18) |
98.3 |
|||||||
|
CBR-E3.6** |
3.6 (0.22) |
100 |
|||||||
|
CBR-E4** |
4.2 (0.26) |
102.3 |
|||||||
|
CBR-E5** |
4.89 (0.3) |
104.2 |
|||||||
|
CBR-E7.7** |
7.81 (0.47) |
8 |
14 |
114.3 |
78.8 |
SAE 油口 |
|||
|
CBR-E9.6** |
9.69 (0.59) |
120.8 |
|||||||
